HiHope Infrared Thermometer(HH-SVTM200)

Based on the dual light artificial intelligence camera, achieves the rapid detection of human body temperature,

with the characteristics of high temperature sensitivity, non-contact, automatic face recognition/automatic recording,

intuitive thermal image, wide detection range, fast speed, no interference with the measured target, safety in use and so on.


Product Highlights

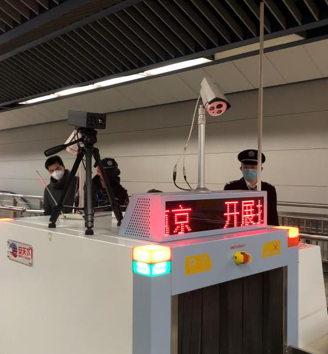

Application Scenarios

Product Parameters

矩形.png       Technical Parameters of Temperature Measuring Gun       矩形.png

Thermal Infrared
SensorUncooled infrared focal plane sensor
Array Size384×288 pixel
Working Wave Band8~14μm
Accuracy±0.2℃ under the condition of Circumstance temperature10~35℃ (Including Blackbody)
Measuring Range33℃~+42℃
Intelligent Detection of Temperature Measuring PointUp to 5 movable temperature measuring points can be selected
Visible light
Sensor1/2.8”SONY Exmor CMOS
Array Size1920×1080 pixel
Major FunctionAutomatic aperture, Automatic white balance, Backlight compensation, Automatic shutter and Automatic/manual conversion at low irradiance (color/black and white)
Code Mode


(Algorithm optional)

Supports intelligent algorithms such as face detection, face recognition and

masking face recovery
AmalgamateSupports alignment of visible and infrared scene and target matching

矩形.png       Technical Parameters of Blackbody       矩形.png

Working Temperature33℃-42℃(Room Temperature 22℃左右)
Control ModePID automatic control
Temperature Resolution0.1℃
Radiation Area78mm×78mm
Cavity Emissivity≥0.95
Temperature Stability±0.15℃
Temperature Uniformity±0.2℃ (2/3 central area)
Host Volume240mm×110mm×150mm

矩形.png       System Parameters       矩形.png

Temperature Range20℃~60℃
Array Size



Video Compression



Measuring Range3m ~ 15m (Customized version with variable distance)
Image Process

Nonuniformity Correction

3D Noise Reduction

Digital Image Enhancement
